ET-A/100-200
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | ET-A/100-200 | 23,5 | 11,5 | 71 | 1,4 | 7,5 | 200 | 33 | 10 | 76 | 2,2 | 42 | 7 | 65 | 3,6 |

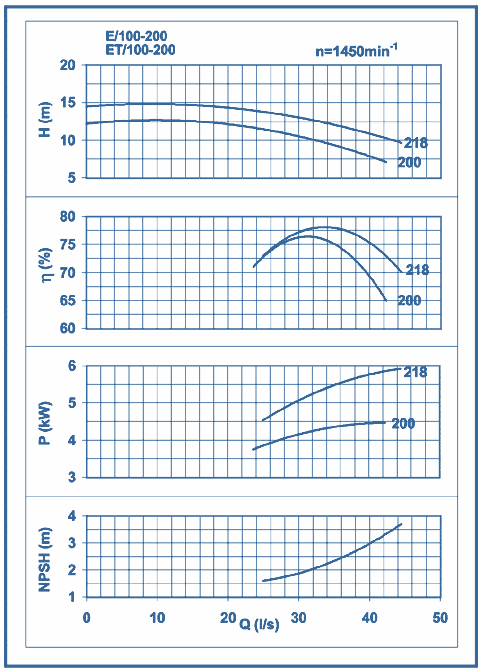

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 7,5 | 1201 | 125 | 470 | 140 | 1101 | 257 | 410 | 460 | 552 | 371 | 651 | 18 | 125 | 100 | 92 | 206 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
