350DV63B (VDV1250-63B)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW | | 350DV63B (VDV1250-63B) | 200 | 50 | 200 | 295 | 44 | 350 | 37 |

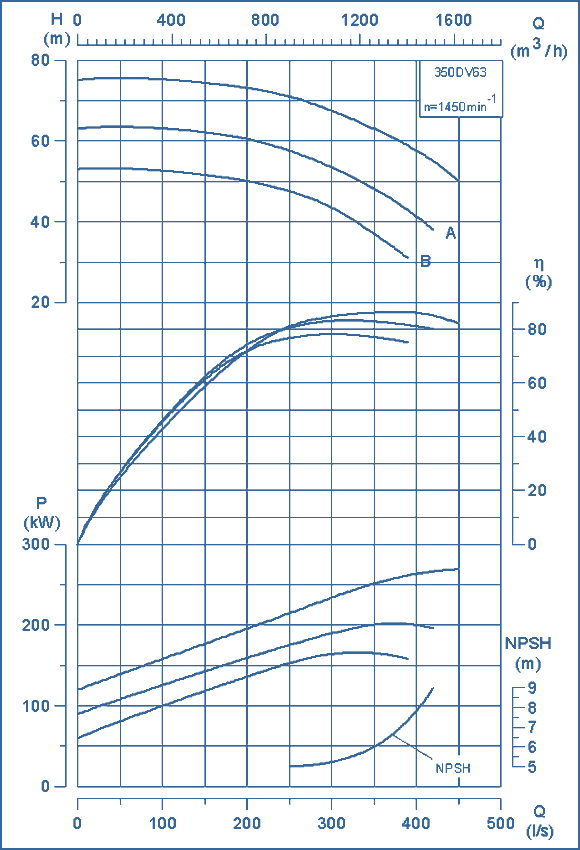

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | Power, kW | Overall dimensions of the pump (LxBxC), mm | Weight, kg | 350DV63B (VDV1250 - 63B) | 200 | 950x958x1260 | 798 |

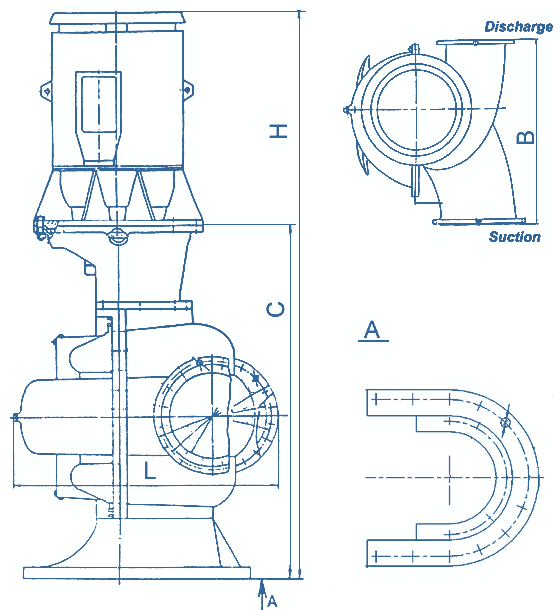

DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | Overall dimensions of the pump unit(LxBxH), mm | Weight, kg | 350DV63B (VDV1250 - 63B) | 200 | 950x958x2450 | 1925 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
