description drawings diagrams technical data:

300DV70

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	P kW
300DV70	250	72	250
	300	69	250
	350	64	315

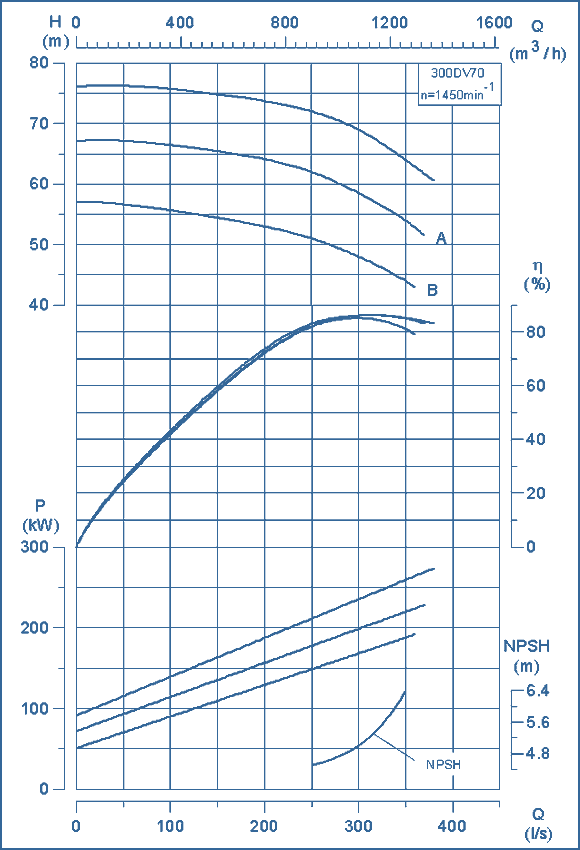

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type	Power, kW	Overall dimensions of the pump (LxBxC), mm	Weight, kg
300DV70	250	1392x1035x1270	1123

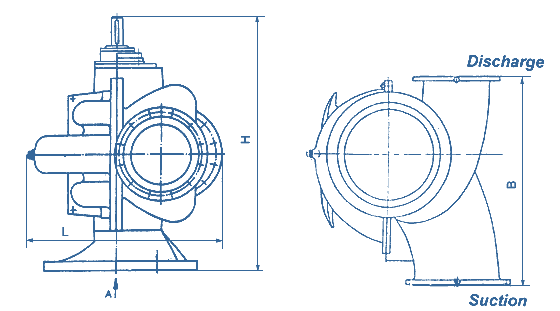

DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions
