140DV63B (VDV500-63B)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW | | 140DV63B (VDV500-63B) | 75 | 46 | 90 | 111 | 44 | 135 | 40 |

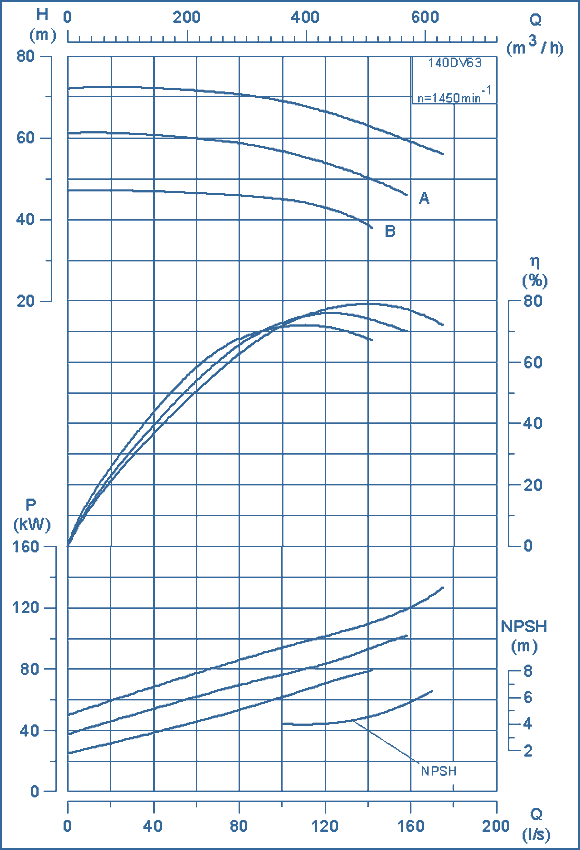

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | Power, kW | Overall dimensions of the pump (LxBxC), mm | Weight, kg | 140DV63B (VDV500-63B) | 90 | 770x718x1420 | 543 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | Overall dimensions of the pump unit(LxBxH), mm | Weight, kg | 140DV63B (VDV500-63B) | 90 | 770x718x2205 | 1085 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
