ET-A/80-200
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | ET-A/80-200 | 14,5 | 11 | 65 | 1,4 | 3 | 200 | 21,5 | 10 | 76 | 1,9 | 27 | 8 | 72 | 3,3 |

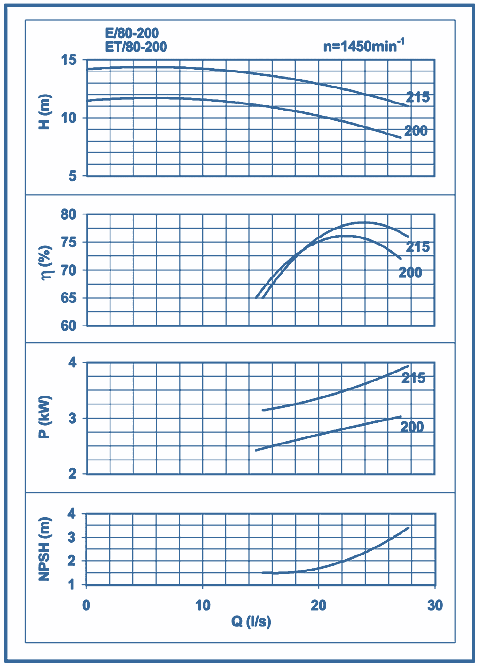

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 3 | 1112 | 125 | 470 | 140 | 1009 | 192 | 390 | 440 | 460 | 320 | 570 | 16 | 100 | 80 | 49 | 163 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
