Home  >>  Products  >>  Sewage Pumps  >>  FS
description drawings diagrams technical data

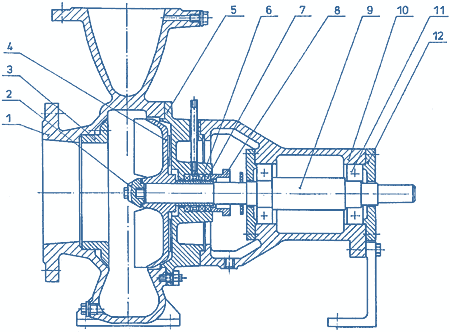

Sectional Drawing, FS
  1. Body
  2. Nut
  3. Front disc
  4. Impeller
  5. Stuffing box
  6. Safety sleeve
  7. Soft packing
  8. Stuffing box flange
  9. Shaft
  10. Bearing housing
  11. Ball bearing
  12. Cap
Sectional Drawing, FS
