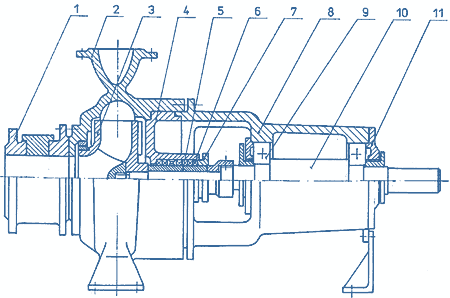

Sectional Drawing, FH
  1. Suction body
  2. Body
  3. Impeller
  4. Stuffing box
  5. Safety sleeve
  6. Soft packing
  7. Stuffing box flange
  8. Bearing housing
  9. Ball bearing
  10. Shaft
  11. Cap
Sectional Drawing, FH
