description drawings technical data

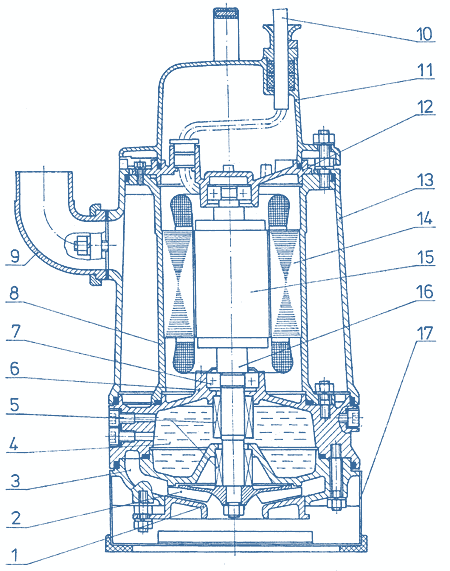

Sectional Drawing, EP
  1. Suction cover
  2. Impeller
  3. Diffuser
  4. Oil chamber
  5. Mechanical seals
  6. Bearing housing
  7. Ball bearing
  8. Motor casing
  9. Bend
  10. Feeding cable
  11. Cover
  12. Bearing shield
  13. Pump body
  14. Stator winding
  15. Rotor
  16. Shaft
  17. Suction screen
Sectional Drawing, EP
