Submersible Pumps
description drawings diagrams technical data

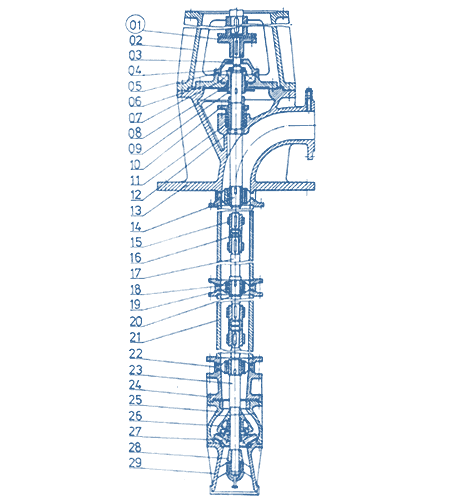

Sectional Drawing, A
  1. Coupling
  2. Body
  3. Sealing band
  4. Cap
  5. Nut
  6. Bearing body
  7. Bearing
  8. Sealing band
  9. An abutment sleeve
  10. Stuffing box flange
  11. Gland seal
  12. Protective sleeve
  13. Body
  14. Upper shaft
  15. Upper ring
  16. Connecting sleeve
  17. Intermediate shaft
  18. Protective sleeve
  19. Sleeve
  20. Ring
  21. Flange pipe
  22. Ring
  23. Bottom shaft
  24. Connecting body
  25. Body intermediate
  26. Sleeve
  27. Impeller
  28. Distance sleeve
  29. Suction body
Sectional Drawing, A

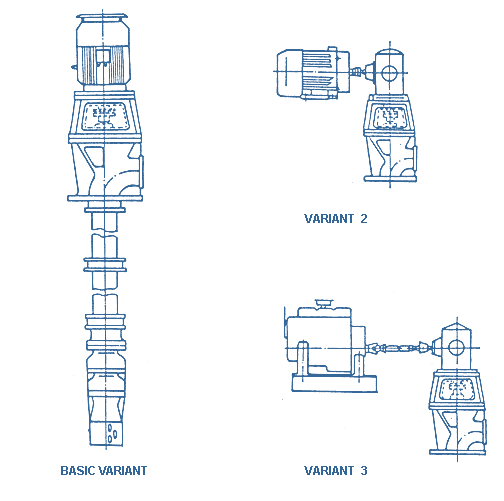

Variants of the pump type "A"
Variants of the pump type
