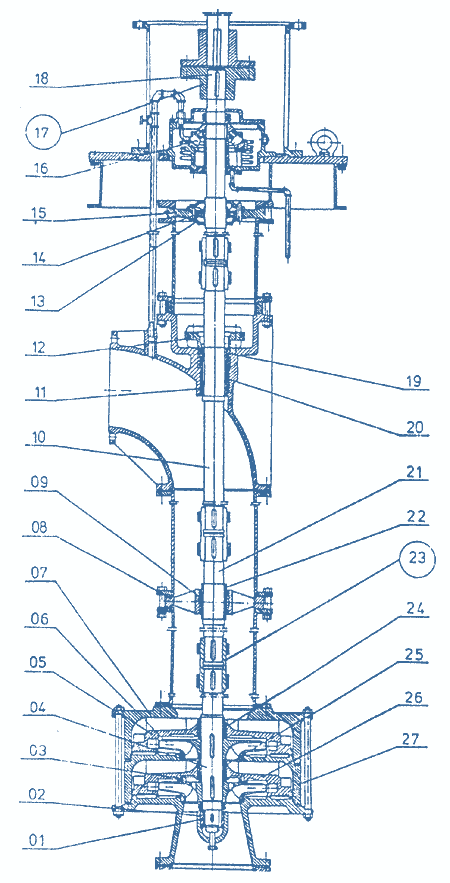

Sectional Drawing, MV
  1. Protective sleeve
  2. Bearing sleeve
  3. Packing ring
  4. Shaft
  5. Guiding apparatus
  6. Impeller
  7. Discharge body
  8. Bearing body
  9. Bearing sleeve
  10. Shaft
  11. Sleeve
  12. Stuffing box flange
  13. Cap
  14. Frictionless bearing
  15. Bearing body
  16. Thrust bearing radial
  17. Coupling
  18. Shaft
  19. Soft packing
  20. Protective sleeve
  21. Shaft
  22. Protective sleeve
  23. Coupling
  24. Distance sleeve
  25. Labyrinth sleeve
  26. Guiding apparatus
  27. Body intermediate
Sectional Drawing, MV
