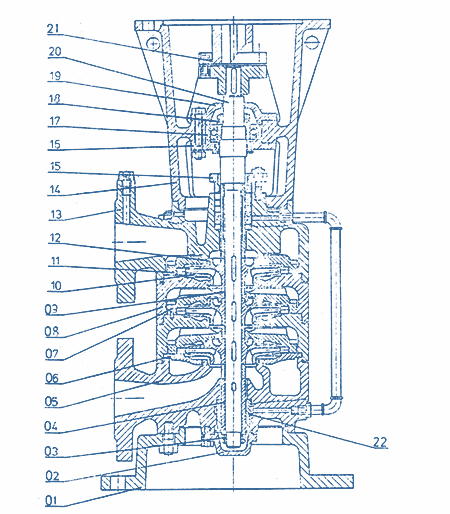

Sectional Drawing, MTV
  1. Prop
  2. Cap
  3. Circular screw-nut
  4. Protective sleeve
  5. Suction body
  6. Disc
  7. Guiding apparatus
  8. Body intermediate
  9. Intermediate sleeve
  10. Impeller
  11. Diffuser
  12. Packing ring
  13. Discharge body
  14. Discharge body
  15. Stuffing box flange
  16. Cap
  17. Ball bearing
  18. Circular screw-nut
  19. Cap
  20. Shaft
  21. Coupling
  22. Bearing sleeve
Sectional Drawing, MTV
