description drawings diagrams technical data

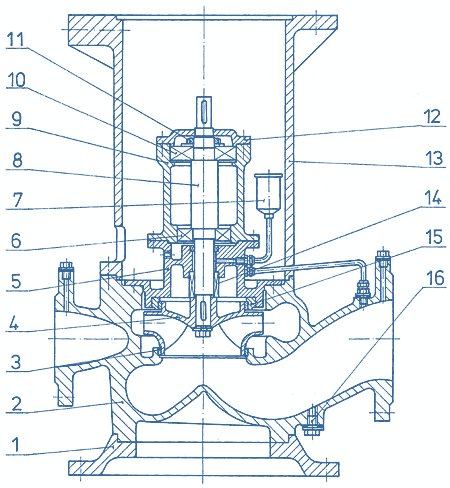

Sectional Drawing, K
  1. Stand
  2. Casing
  3. Packing ring
  4. Impeller
  5. Stuffing box
  6. Radial ball bearing
  7. Lubrication system
  8. Shaft
  9. Bearing housing
  10. Radial ball bearing
  11. Nut
  12. Cap
  13. Upper body
  14. Mechanical seal
  15. Packing ring
  16. Plug
Sectional Drawing, K
