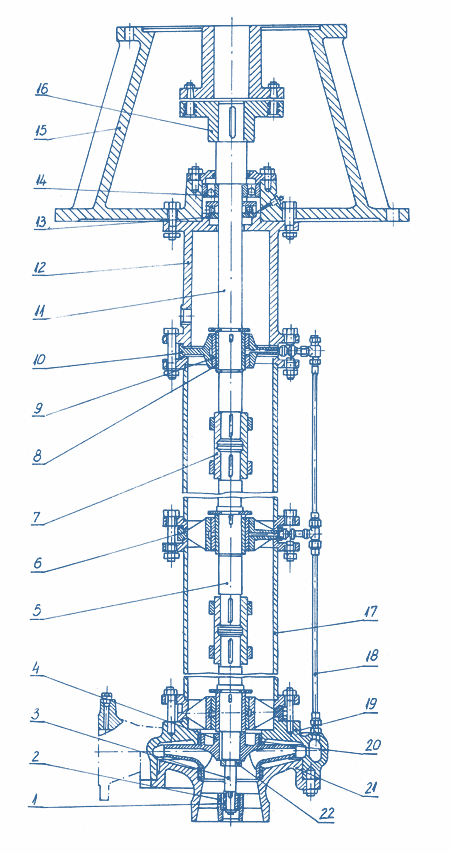

Sectional Drawing, EVP
  1. Protective sleeve
  2. Bearing sleeve
  3. Bottom shaft
  4. Impeller
  5. Intermediate shaft
  6. Bearing body
  7. Connecting sleeve
  8. Protective sleeve
  9. Bearing sleeve
  10. Bearing body
  11. Upper shaft
  12. Intermediate body
  13. Toe bearing
  14. Radial bearing
  15. Body
  16. Coupling
  17. Intermediate body
  18. Pipe system
  19. Discharge body
  20. Sealing ring
  21. Suction body
  22. Circular screw-nut
Sectional Drawing, EVP
