Home  >>  Products  >>  Dewatering Pumps  >>  Vertical Pumps, VS, EV, EVP  >>  EV
description drawings technical data

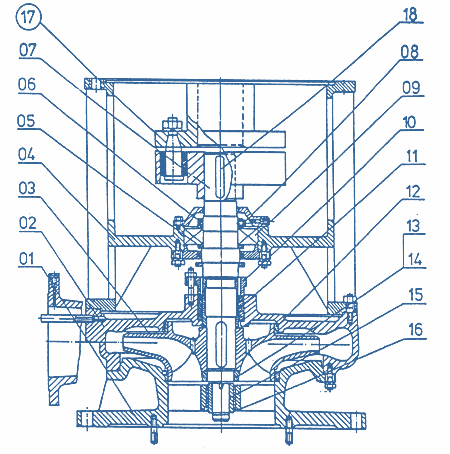

Sectional Drawing, EV
  1. Suction body
  2. Discharge body
  3. Impeller
  4. Body intermediate
  5. Spreader ring
  6. Nut
  7. Shaft
  8. Locking screw
  9. Ball bearing
  10. Protective sleeve
  11. Gland seal
  12. Labyrinth packing ring
  13. Nut
  14. Safety washer
  15. Sliding bearings
  16. Safety ring
  17. Coupling
  18. Key
Sectional Drawing, EV
