Home  >>  Products  >>  Sewage Pumps  >>  FKS
description drawings diagrams technical data

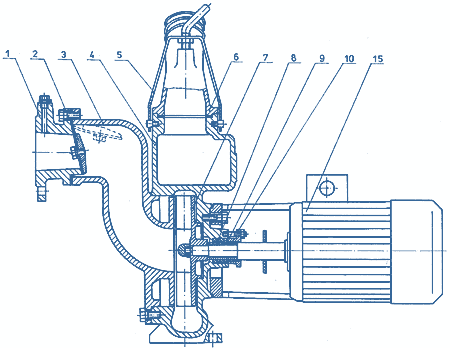

Sectional Drawing, 6FKS7M
  1. Suction body
  2. Valve
  3. Bend
  4. Discharge body
  5. Bracket
  6. Nipple
  7. Impeller
  8. Soft packing
  9. Safety sleeve
  10. Stuffing box flange
  11. Bearing housing
  12. Ball bearing
  13. Shaft
  14. Cap
  15. Electric motor
Sectional Drawing, 6FKS7M

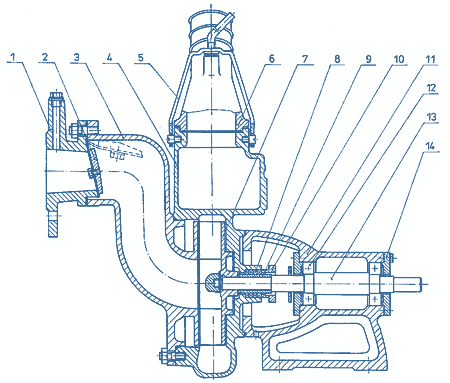

Sectional Drawing, FKS
Sectional Drawing, FKS
