Home  >>  Products  >>  Sewage Pump  >>  FE
description drawings diagrams technical data

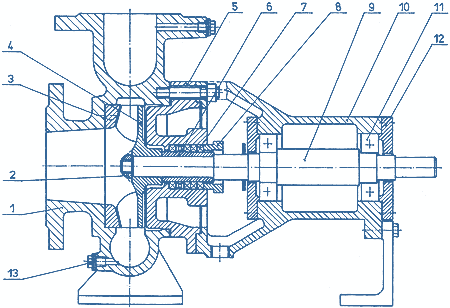

Sectional Drawing, FE
  1. Nut
  2. Front disc
  3. Impeller
  4. Stuffing box
  5. Safety sleeve
  6. Soft packing
  7. Stuffing box flange
  8. Shaft
  9. Bearing housing
  10. Ball bearing
  11. Cap
  12. Plug
Sectional Drawing, FE
