Home  >>  Products  >>  Diesel Fuel Pumps
description drawings diagrams

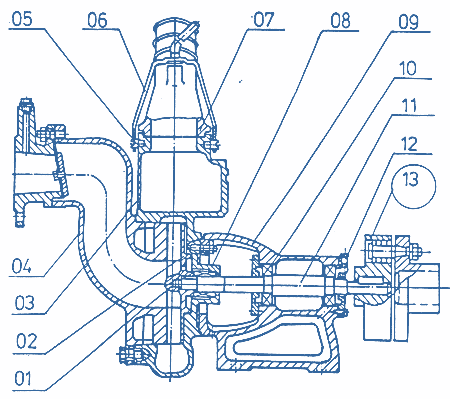

Sectional Drawing, 12ESG18
  1. Nut
  2. Impeller
  3. Discharge body
  4. Suction body
  5. Dowel
  6. Yoke
  7. Nose-piece
  8. Mechanical seal
  9. Bearing body
  10. Ball bearing
  11. Shaft
  12. Cap
  13. Coupling
Sectional Drawing, 12ESG18
