Home  >>  Products  >>  Pumps Hot Water  >>  EG
description drawings diagrams technical data

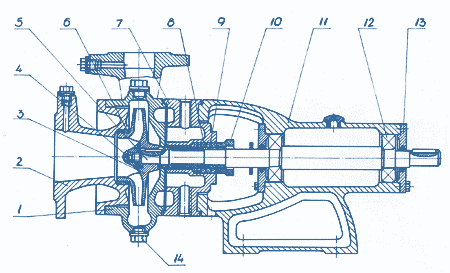

Sectional Drawing, EG
  1. Discharge body
  2. Suction body
  3. Impeller
  4. Blind nut
  5. Shaft
  6. Packing ring
  7. Intermediate body
  8. Padding
  9. Protection sleeve
  10. Stuffing flange
  11. Bearing body
  12. Ball bearing
  13. Cap
  14. Plug
Sectional Drawing, EG
