Home  >>  Products  >>  Chemical pumps  >>  MTR
description drawings diagrams technical data

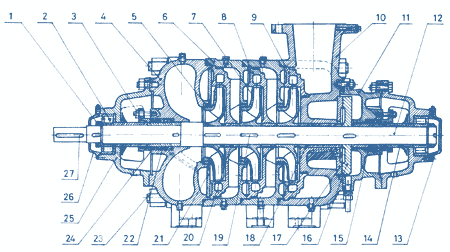

Sectional Drawing, MTR
  1. Blocking nut
  2. Roller bearing
  3. Stuffing box flange
  4. Suction body
  5. Sealing ring
  6. Intermediate body
  7. Impeller
  8. Guiding apparatus
  9. Diffuser
  10. Discharge body
  11. Stuffing-box housing
  12. Shaft
  13. Cap
  14. Sleeve
  15. Stuffing-box sleeve
  16. Packing disc
  17. Balancing disk
  18. Compensating sleeve
  19. Key
  20. Intermediate sleeve
  21. Disc
  22. Stuffing-box ring
  23. Connection bolt
  24. Stuffing-box packing
  25. Bearing body
  26. Cap
  27. Key
Sectional Drawing, MTR

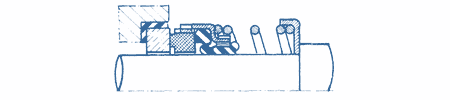

Mechanical Seal Version
Mechanical Seal Version
