Home  >>  Products  >>  Chemical pumps  >>  D
description drawings diagrams technical data

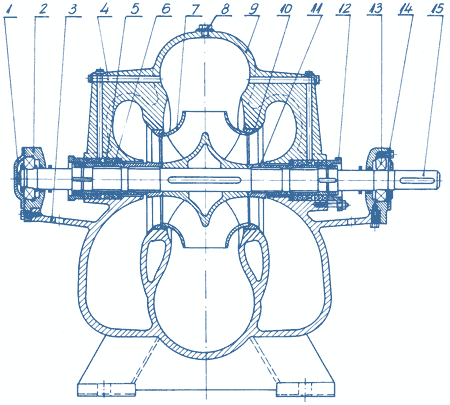

Sectional Drawing, D
  1. Cap
  2. Bearing body
  3. Housing
  4. Cooling piping system
  5. Packing ring
  6. Safety sleeve
  7. Impeller
  8. Plug
  9. Cover
  10. Labyrinth ring
  11. Sleeve
  12. Stuffing-box flange
  13. Ball bearing
  14. Cap
  15. Shaft
Sectional Drawing, D
Mechanical Seal Version
Mechanical Seal Version
