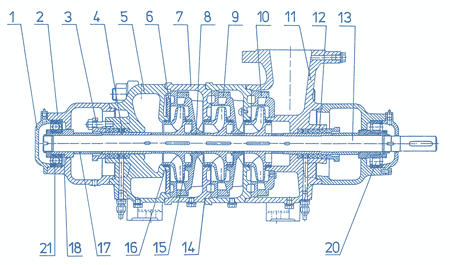

Sectional Drawing,
2MTR18, 3MTR18, 4MTR25, 11MTR32, 18MTR32, 28MTR45
|
- Cap
- Bearing housing
- Stuffing-box flange
- Safety sleeve
- Suction body
- Disc
- Intermediate body
- Intermediate sleeve
- Guiding apparatus
- Diffuser
- Discharge body
- Soft packing
- Shaft
- "O"-ring
- Impeller
- Sealing ring
- Compensating sleeve
- Bearing sleeve
- Mechanical seal
3. Cap for mechanical seal
- Roller bearing
- Ball bearing
|
|
|
Mechanical Seal Version
|
|

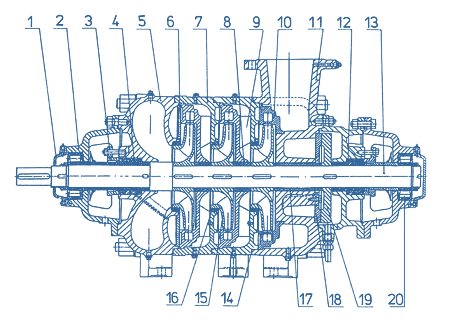

Sectional Drawing
45MTR45, 70MTR32, 110MTR45
|
- Cap
- Bearing housing
- Stuffing-box flange
- Safety sleeve
- Suction body
- Disc
- Intermediate body
- Intermediate sleeve
- Guiding apparatus
- Diffuser
- Discharge body
- Soft packing
- Shaft
- "O"-ring
- Impeller
- Sealing ring
- Compensating sleeve
- Packing disc
- Balancing disc
- Roller bearing
|
|
|

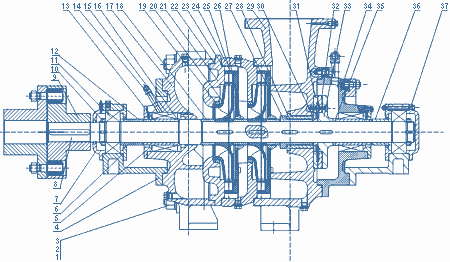

Sectional Drawing 140MTR50
|
- Connecting stud
- Nut
- Spacer
- Bearing housing
- Gland cap
- Bearing cap
- Vented cap
- Shaft
- Coupling
- Nut
- Bearing box
- Sleeve
- Stuffing-box sleeve
- Pipe system
- Mechanical seal
- "O"-ring
- Suction body
- Intermediate sleeve
- Packing ring
- Impeller
- Disc
- "O"-ring
- "O"-ring
- Intermediate casing
- Diffuser
- Flared sleeve
- Bead sleeve
- Labyrinth sleeve
- Discharge body
- Distance sleeve
- Disc seal
- Balancing disc
- Centre boss
- Stuffing box
- Ring
- Sleeve
- Blind joint
|
|
Multi-Stage Pumps, MTR
