description drawings diagrams technical data

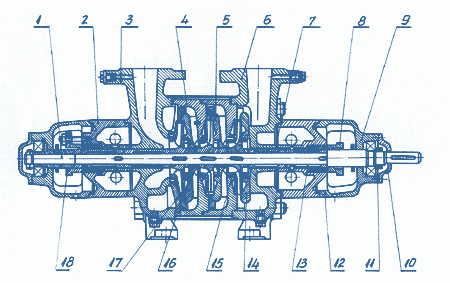

Sectional Drawing, MP
  1. Shaft
  2. Stuffing-box
  3. Suction body
  4. Intermediate body
  5. Guiding apparatus
  6. Discharge body
  7. Packing
  8. Flanged stuffing-box
  9. Bearing body
  10. Cover
  11. Round nut
  12. Bear-ing body
  13. Protective sleeve
  14. Diffusor
  15. Impeller
  16. In-termediate sleeve
  17. Disk
  18. Bearing sleeve
Sectional Drawing, MP
