Monophase pumping units
description drawings diagrams technical data

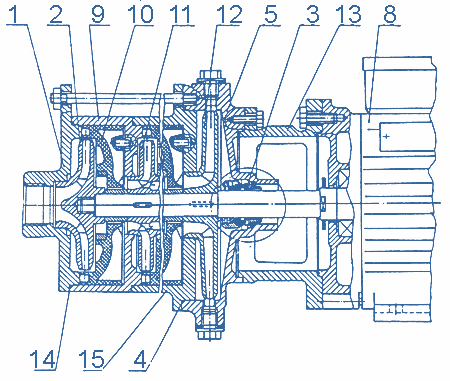

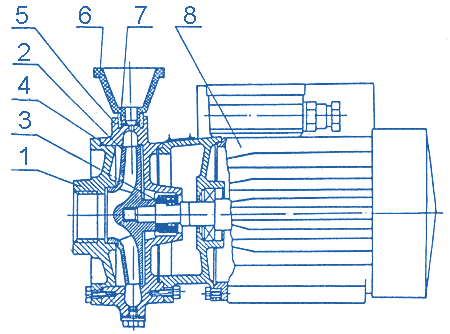

Sectional Drawing, Vida 12, Vida 13, Vida 14, Vida 15
  1. Suction body
  2. Impeller
  3. Mechanical seal
  4. "O"-ring
  5. Discharge body
  6. Cornet
  7. Packing
  8. Electric motor
  9. Intermediate body
  10. Guiding apparatus
  11. Impeller
  12. Impeller
  13. Intermediate shield
  14. "O"-ring
  15. Intermediate body with lange
  16. Stuffing-box flange
  17. Packing
Sectional Drawing, Vida 12, Vida 13, Vida 14, Vida 15
Sectional Drawing, Vida 16(1EM38), Vida 17(1EM50), Vida 18(1EM62)
Sectional Drawing, Vida 16(1EM38), Vida 17(1EM50), Vida 18(1EM62)

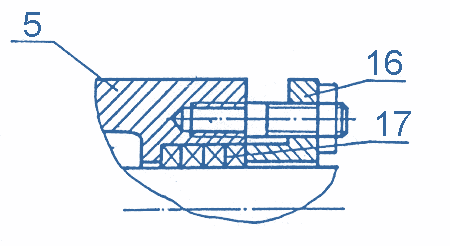

Variant with gland seal
(Vida 1; 3; 4; 5; 6(E1M38); 7(E1M50); 8(E1M62))
Variant with gland seal
