Single-Stage Pumps
description drawings diagrams technical data

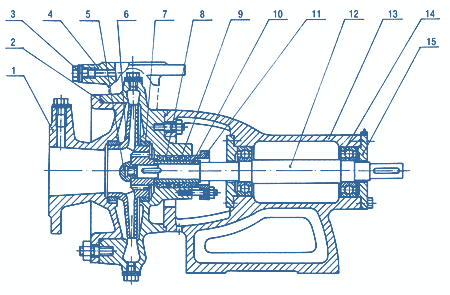

Sectional Drawing, "E"
  1. Suction body
  2. "O"-ring
  3. Plug
  4. Discharge body
  5. Dapper screw-nut
  6. Impeller
  7. Packing ring
  8. Sealing ring
  9. Sealing gland
  10. Safety sleeve
  11. Sealing flange
  12. Shaft
  13. Bearing body
  14. Ball bearing
  15. Bearing cap
  16. Mechanical seal
Sectional Drawing, E

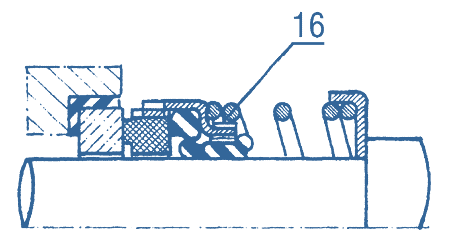

Mechanical Seal Version

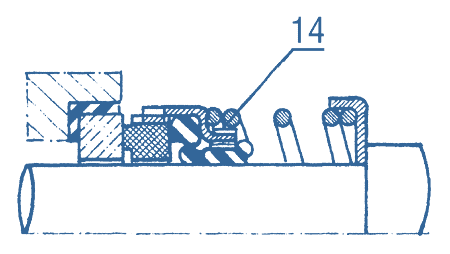

Mechanical Seal Version

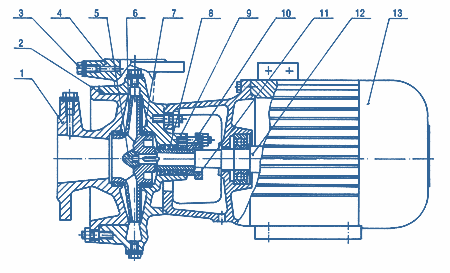

Sectional Drawing, "E-M"
  1. Suction body
  2. "O"-ring
  3. Plug
  4. Discharge body
  5. Dapper screw-nut
  6. Impeller
  7. Packing ring
  8. Sealing ring
  9. Sealing gland
  10. Safety sleeve
  11. Sealing flange
  12. Shaft
  13. El. motor
  14. Mechanical seal
Sectional Drawing, E-M
Mechanical Seal Version
Mechanical Seal Version
