Vipom's pumps pumpsSewage Pumps, SH
pumps
Sewage Pumps
description drawings diagrams technical data

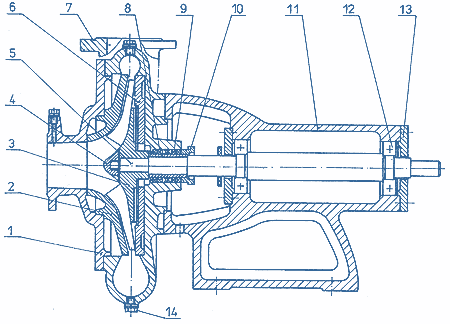

Sectional Drawing, SH
  1. Suction body
  2. Front disc
  3. Impeller
  4. Nut
  5. Shaft
  6. Rear disc
  7. Discharge body
  8. Safety sleeve
  9. Soft packing
  10. Stuffing box flange
  11. Bearing housing
  12. Ball bearing
  13. Cap
  14. Plug
Sectional Drawing, SH
